Color Bleeding in Acetate Lamination — What We Changed to Fix It

Why Color Bleeding Happens in Multi-Layer Acetate Eyewear — And How We Fixed It

In acetate eyewear manufacturing, laminated designs always look straightforward on paper.
Stack a few colors, press them together, shape the frame — done.

But once you start working on multi-layer acetate frames, especially temples, you realize very quickly:

 Lamination is not just about materials — it's about structure.

The Problem We Ran Into

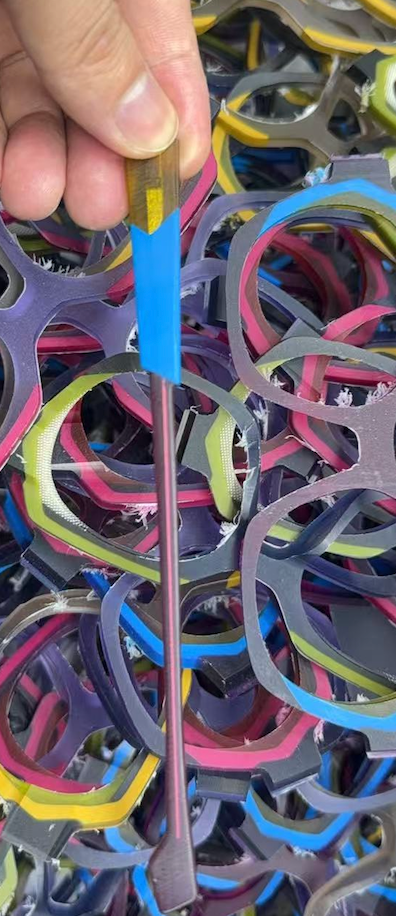

We were developing a set of laminated acetate temples using three colors:

• Clear yellow (front)
• Solid blue (middle)
• Translucent red (back layer)

Everything looked fine after lamination.

The issue only showed up later — during the metal core insertion process, which is a standard step in acetate frames manufacturing.

We started seeing color bleeding.

Not dramatic, not obvious at first glance.
But the edge between colors lost its sharpness — especially where the dark blue meets the red.

For brands that care about detail, this kind of inconsistency is hard to accept.

Why Color Bleeding Happens in Acetate Lamination

From our experience, this kind of issue is rarely just a “material problem”.

In acetate lamination, especially with multi-layer structures, three things interact:

• Different material densities
• Uneven pressure during processing
• Lack of a controlled path for the metal core

When the core is inserted, it doesn’t just “go in” —
it pushes material aside.

If the structure doesn’t guide that movement, the layers start interfering with each other.
That’s where color migration comes from.

We Stopped Adjusting the Process — And Changed the Structure

At first, we tried the usual adjustments:

• Temperature
• Pressure
• Timing

It improved slightly, but didn’t solve the problem.

So we took a different approach:

Instead of forcing the process to behave better,
we redesigned the laminated structure itself.

1. T-Shape Lamination Structure

We introduced a T-shape structure in the acetate lamination.

This wasn’t for design — purely for control.

What it changed:

• The metal core now has a defined path
• Pressure is distributed more predictably
• The front visual layer is less affected

In multi-layer acetate eyewear, this kind of structural guidance makes a bigger difference than most people expect.

2. Pre-Drilling to Control Core Insertion

Next, we added a step in the acetate lamination process:

 2.0 × 3.0 mm drilling on the red layer after lamination

At the same time, we removed part of the front dark blue material in that area.

Before this:

• The core forced its way in
• Materials shifted unpredictably

After this:

• The core follows a controlled path
• Less disturbance to surrounding layers

This is a small adjustment, but it directly reduces color bleeding in acetate frames.

3. Thickness Adjustment to Manage Pressure

We also made a subtle change to the material setup:

• Back blue layer → slightly thicker
• Front translucent red layer → slightly thinner

This helps shift pressure toward the back during insertion.

In simple terms:
the structure absorbs stress where it’s less visible,
instead of disturbing the front-facing colors.

What Changed in the Final Result

After these adjustments:

• Color boundaries became cleaner
• The “bleeding edge” issue disappeared
• Production results became consistent

Not just one good sample — but repeatable results in custom acetate eyewear manufacturing.

A Practical Note on Acetate Eyewear Lamination

If you’re working on laminated acetate eyewear, especially with strong color contrast:

Don’t just think about:

material combinations

You also need to consider:

how the structure behaves during core insertion

Because in most cases,
 color bleeding is a structural issue, not just a lamination issue.

Final Thought

In acetate frames manufacturing, especially for colorful designs,
what matters is not just how you laminate —

but how everything behaves after lamination.

That’s usually where the real problems start.
